Fan Sunon Axial 30x30x10 12 Volt Maglev Silent


Sunon 30x30x10 12 Volt Maglev Silent Fan

9 in stock

SKU: sunaxmag123010 Categories: ,

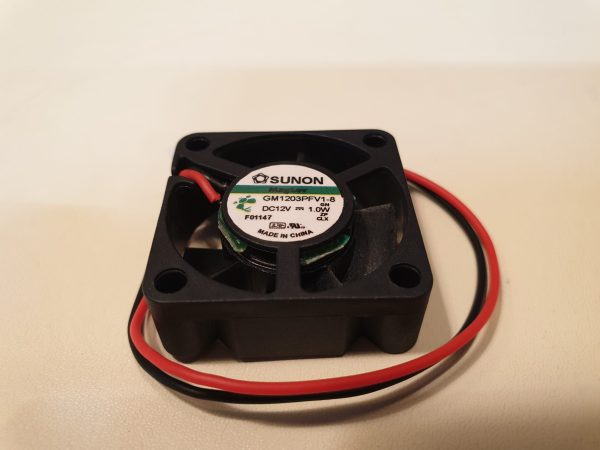

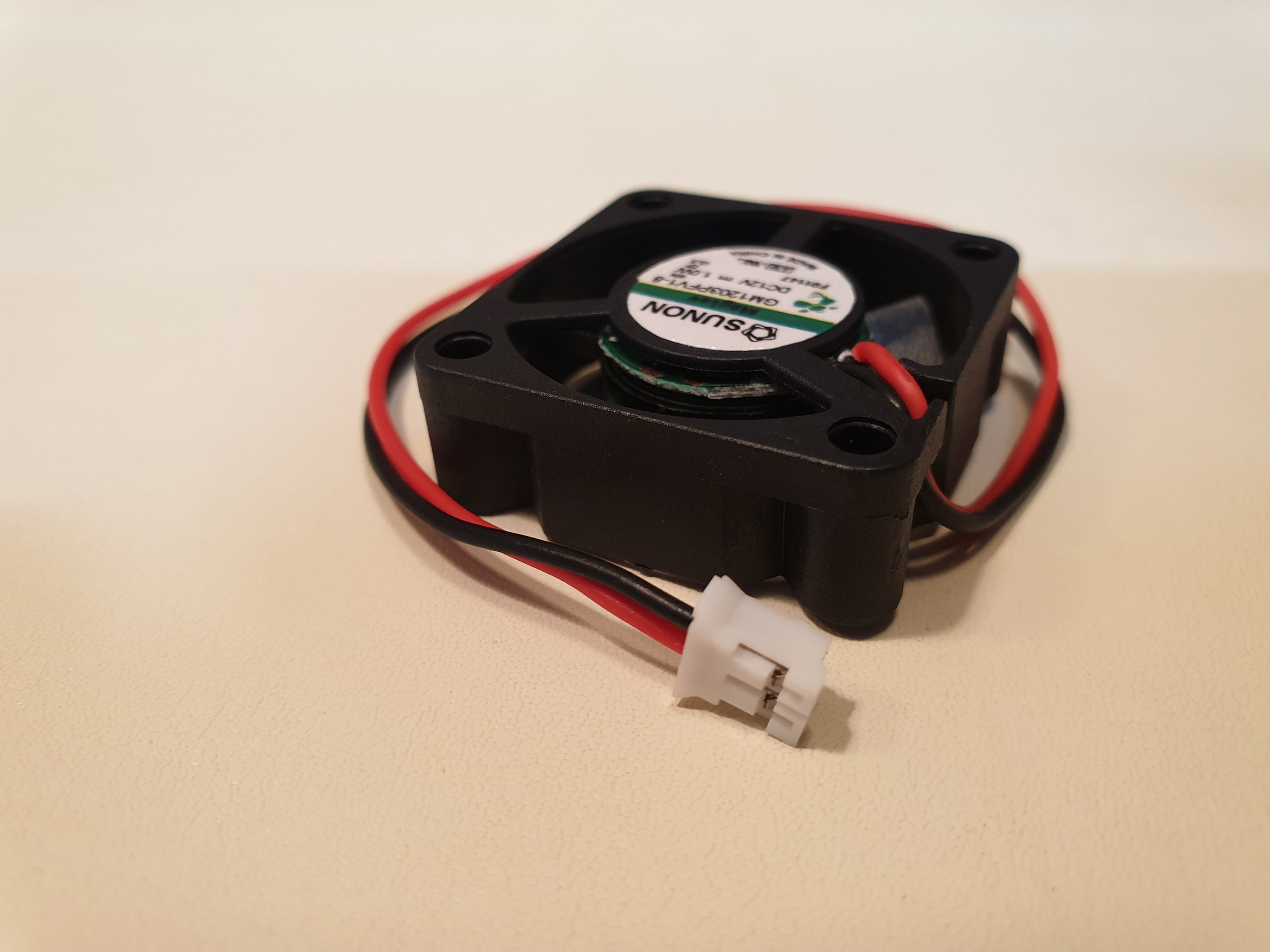

Sunon 30mm 12 volt Maglev silent Fan

Sunon 30x30x10 12 Volt Maglev Silent Fan suitable for heatbreak cooling.

For decades, SUNON has consistently concentrated on its core motor technology, and as a result, we have accumulated various inventions and innovations in this field. We now provide 17mm~120mm DC Fan & Blower series and offer the most effective thermal solutions. In 1999, SUNON successfully released the MagLev Motor Fan, the first magnetic levitation motor in the world. Based on the excellent performance of this product, follow up motor fan products featuring higher flexibility, energy-efficiency, lower noise, and longer service life have been created. The product series is RoHS compliant and is also certified according to many quality management accreditation systems and has gained various accreditations such as UL, TUV, and VDE. According to a global mini motors market survey report published by Fuji Keizai (2009), SUNON’s share in DC Fan market tops the world, maintaining its leadership in the market.

Manufacturer Sunon Fans
Series MagLev® GM
Voltage – Rated 12VDC
Size / Dimension Square – 30mm L x 30mm H
Width 10.00mm
Air Flow 5.5 CFM (0.154m³/min)
Static Pressure 0.150 in H2O (37.4 Pa)
Bearing Type Vapo-Bearing™
Fan Type Tubeaxial
Noise 23.0dB(A)
Power (Watts) 1W
RPM 9500 RPM
Termination 2 Wire Leads
Ingress Protection
Operating Temperature 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CUR, TUV, UL
Weight 0.019 lb (8.62 g)
Current Rating (Amps) 0.080A
Voltage Range 4.5 ~ 13.8VDC
Material – Frame Polybutylene Terephthalate (PBT)
Material – Blade Polybutylene Terephthalate (PBT)

Additional information

Weight 0.030 kg
Dimensions 5 × 5 × 3 cm
