Proximity Switch Inductor Probe 5 Volt 8mm NPN

$7.95

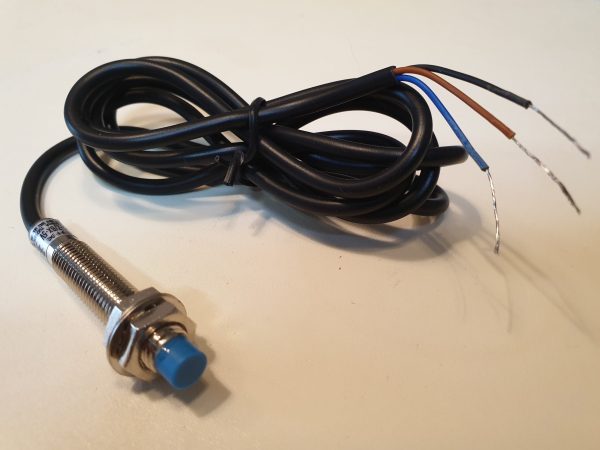

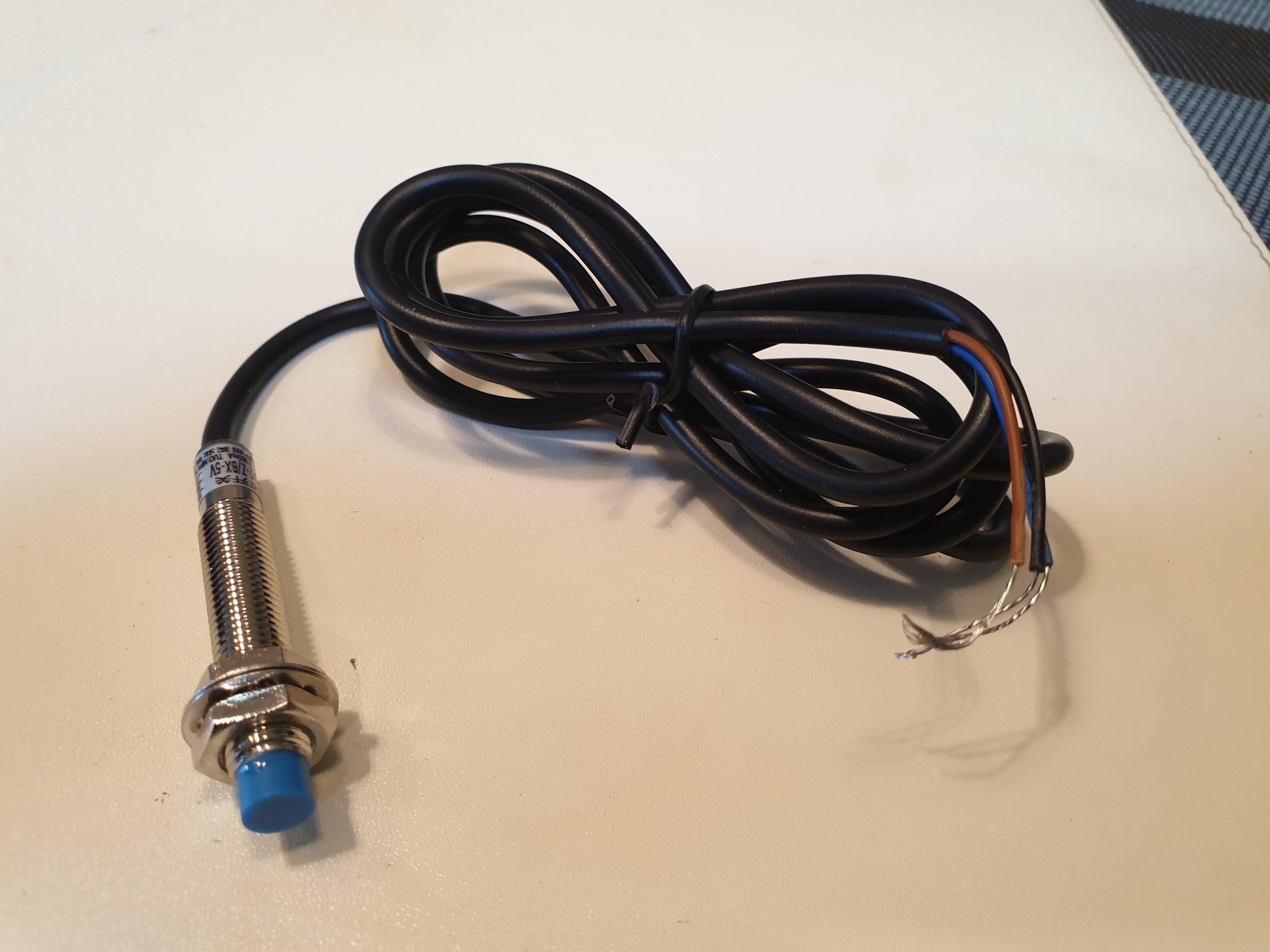

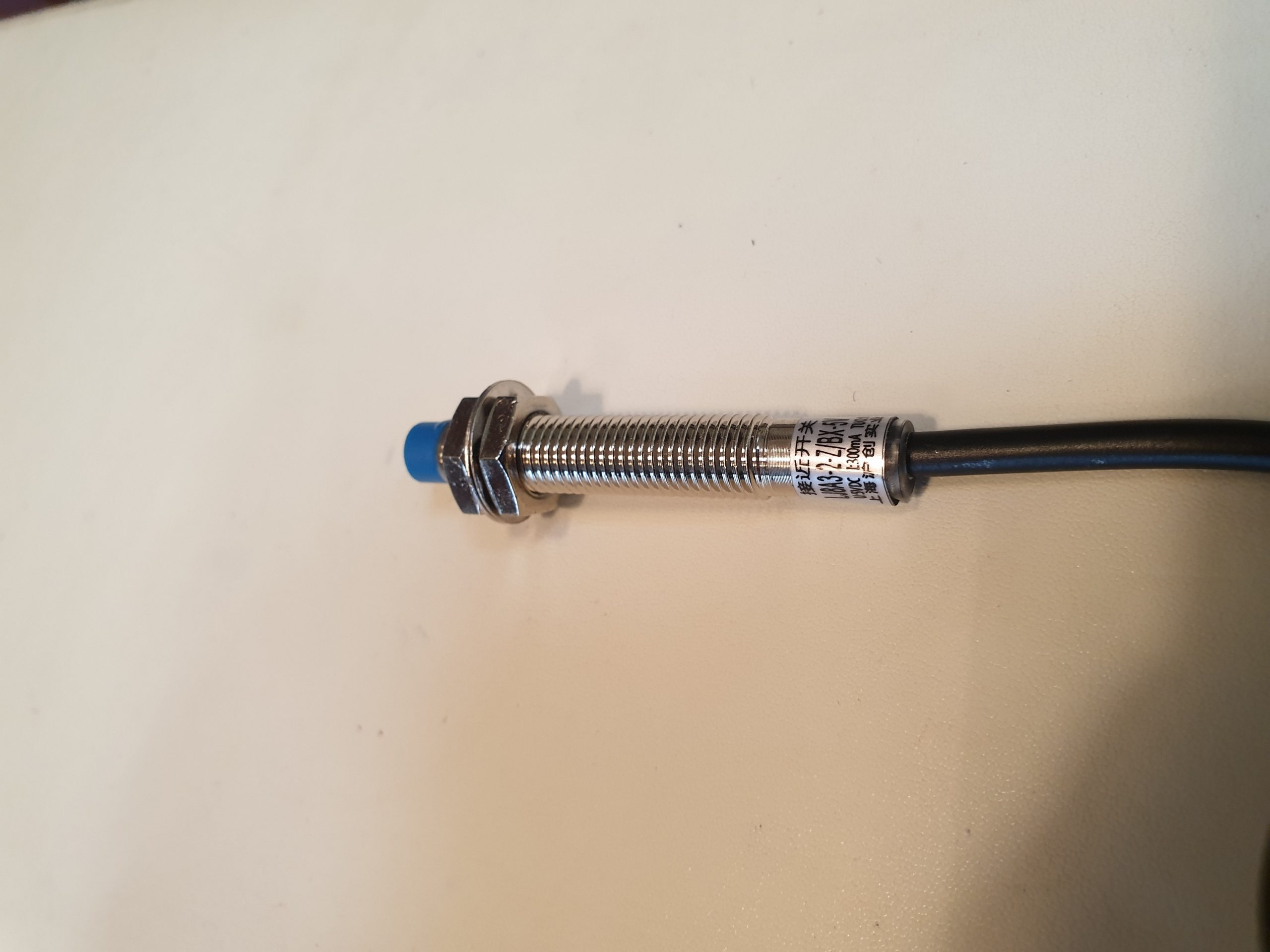

8mm 5v Normally open Inductive probe model LJ8A3-2-Z/BX

20 in stock

SKU: induc85vnpn Category:

Description

This 8mm 5 volt normally open Inductive probe model LJ8A3-2-Z/BX-5V has a 2mm sensing distance and operates on 5 volts so it is powered directly from your endstop connector.

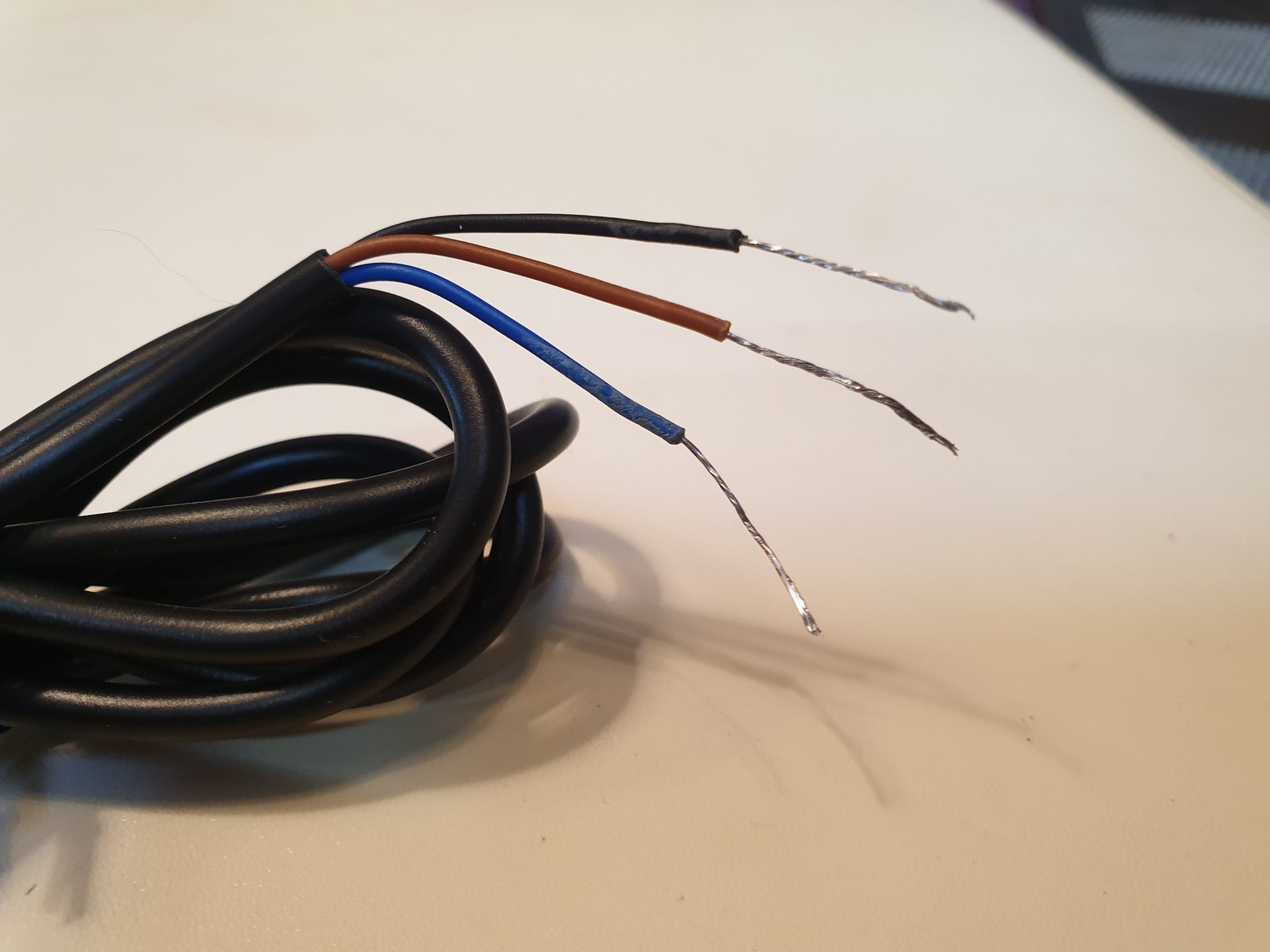

These probes use international colour codes, when wiring it up brown goes to 5v positive, blue goes to ground and black goes to signal. See the example below but make sure to check the connections that suit your board.

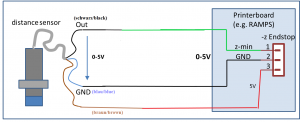

5v probe wiring





Additional information

Weight 0.050 kg
Dimensions 10 × 10 × 2 cm
